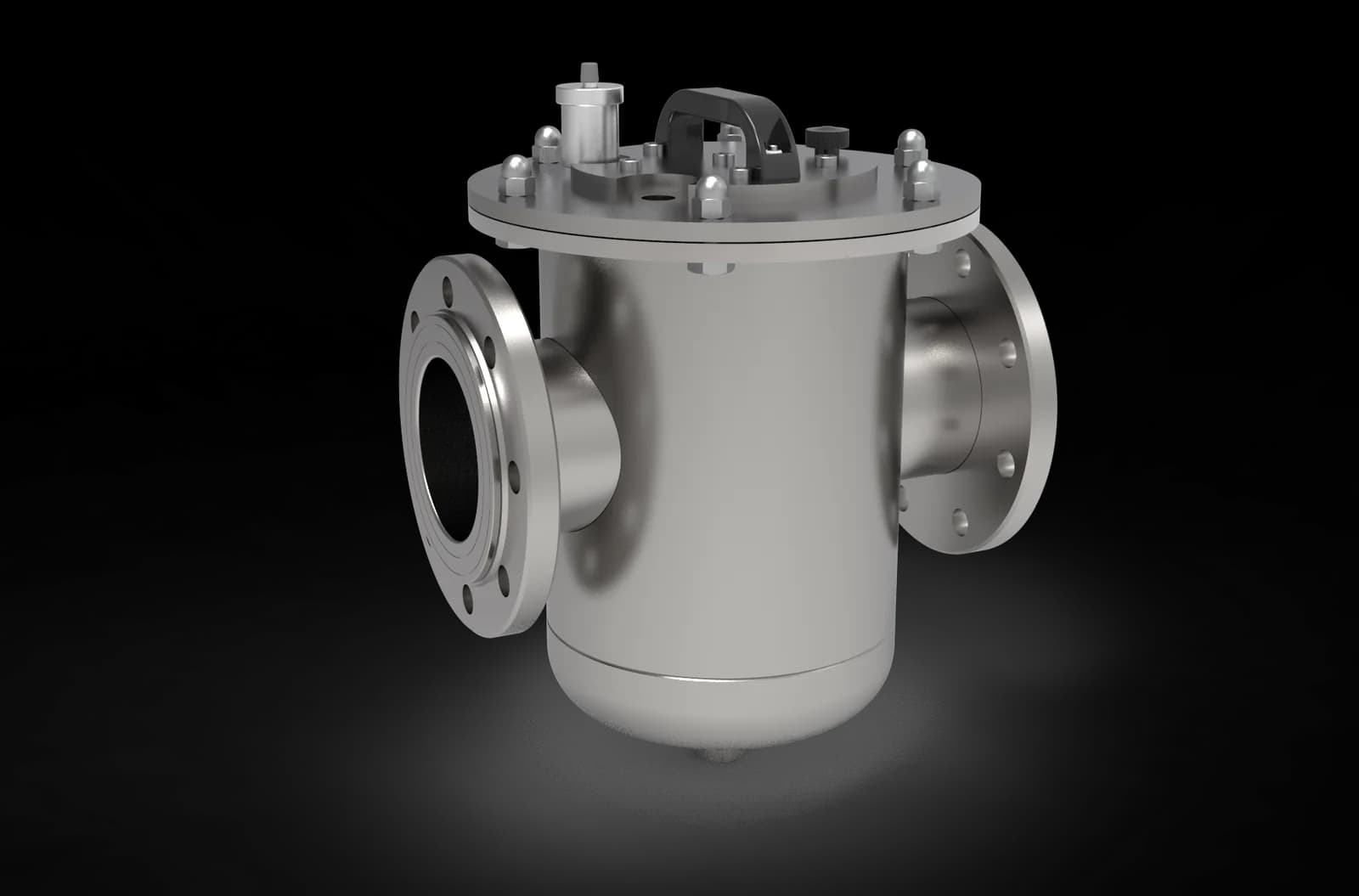

IRONINOX® Magnetic Filter
Tap to inspect in full screen
Overview
Iron powder and magnetite are not just a problem for residential installaions. This is the product for maintaining a clean system protection in industrial applications. IronTrap products can be used various applications in heating and cooling systems.
When using the IronTrap Magnetic Filter and protective cleaning fluids together, heating and cooling systems get the complete protection. Long-term system protection is ensured if regular monitoring of the systems is maintained in addition to the use of protective fluids.
Advantages of Use Compatible with all heating and cooling systems. Reduces abrupt failure and high maintenance costs. Extends the life of the equipment throughout the system. Helps to restore system efficiency. High performance magnetic sticks capture even the smallest magnetic particles. Easy to install and maintain. It provides a quick cleaning by its vacuum valve.
Technical Features
- Maximum Running Pressure: 10 Bar
- Running Temperature: 3°C – 100°C
Body
- Material: TS EN 10219
- Drain: 1 “ Ball Valve TSEN 13547
- Vacuum Valve: 1/2 “ Ball Valve TSEN 13547
- Air Vent: Automatic Air Vent ½”
Gasket
- Cover Gasket: EPDM

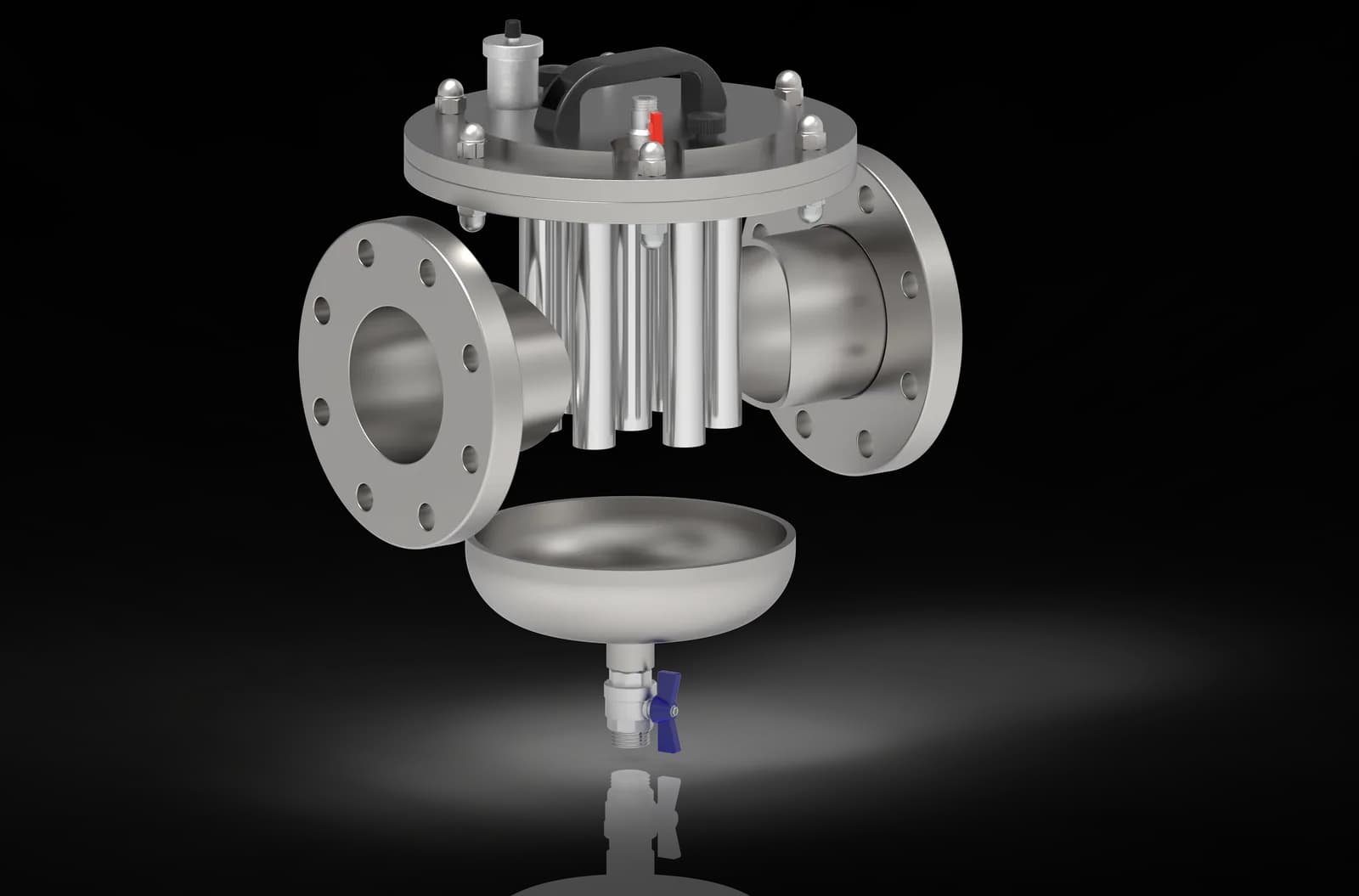

Magnets
- Magnet Surface Pulling Force: 9500 – 10500 gauss
- Magnet Carriage Flange: AISI 304 Stainless Steel
- Cleaning Cover: AISI 304 Stainless Steel
- Material: High Performance NdFeb
- Sleeve: AISI 304 Stainless Steel

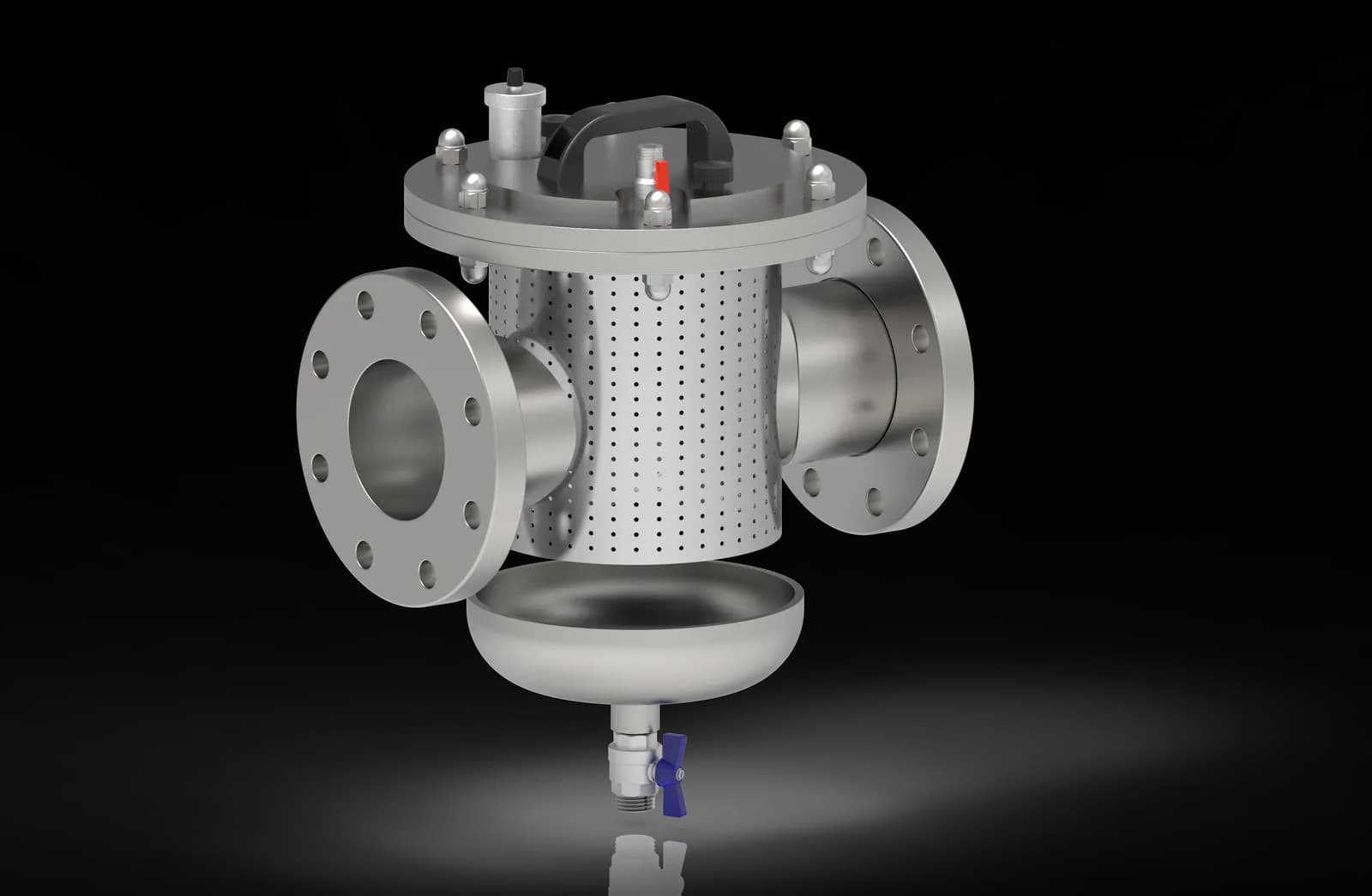

Seperator Filter
- Material: AISI 304 Stainless Steel
- Mesh Size: 1000 Micron
Connection Flange
- Material: TS EN 1092-1
- Pressure Class: PN16
