Electro Mechanical Panels

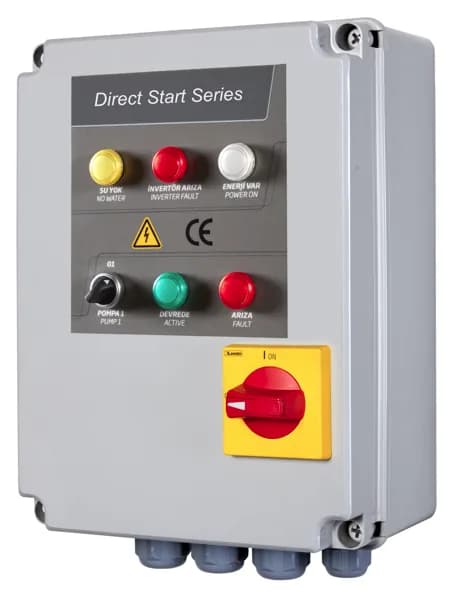

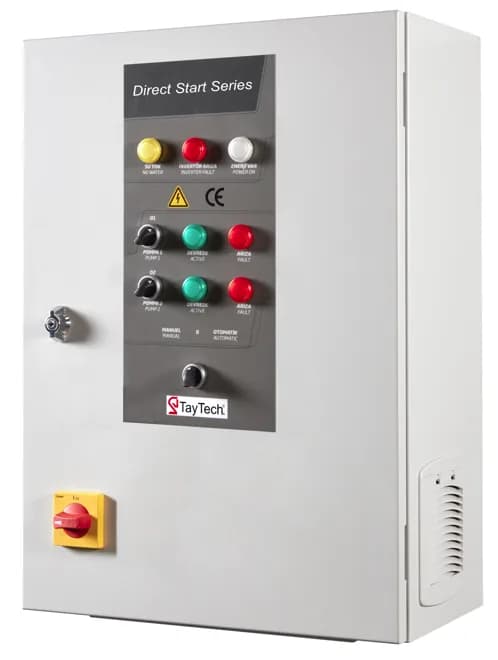

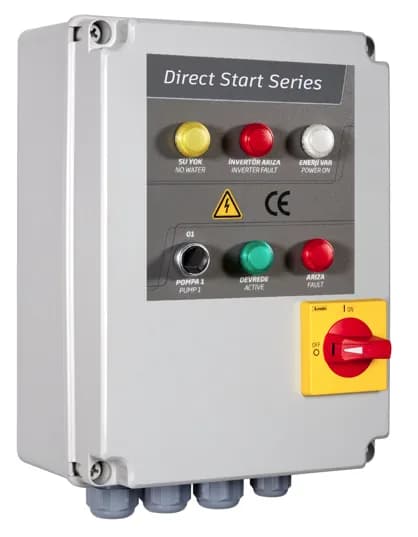

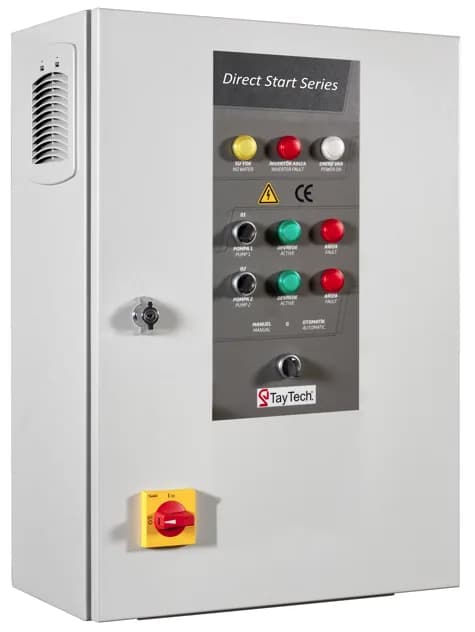

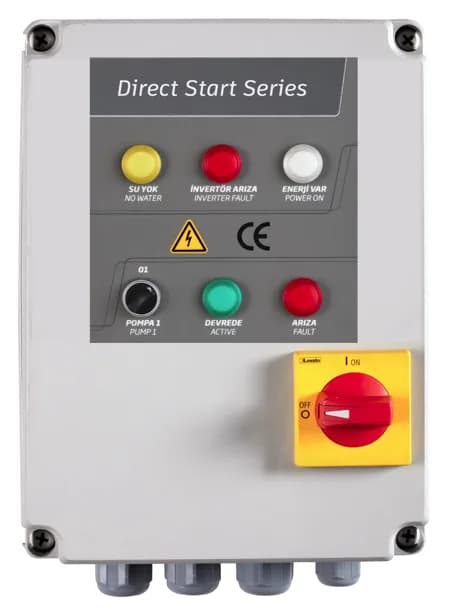

Direct Start
Tap to inspect in full screen
Overview
- Direct Start
Controller for 4 pump single or three-phase motors with direct starter. (Pressurazition, Emptying, filling in waste and clean water applications).
- Different types of connections to start and stop motor such as; flow switch, level electrode, pressure switches/sensors
Technical Features
- Metal Enclosure / IP 54
- Main switch with locking mechanism
- Power supply 1-50/60Hz 230V ±%15
- Power supply 3-50/60Hz 400V ±%15
- Green LED for Motor Running / Red LED for failures
- Input for start command
Protections and Failures
- Motor Overcurrent
- Phase Loss and incorrect sequence
- Dry running protection
- Motor protection fuses
- Adjustable weekly test run
In Application
