Smart Series
Smart Exclusive
Tap to inspect in full screen
Overview

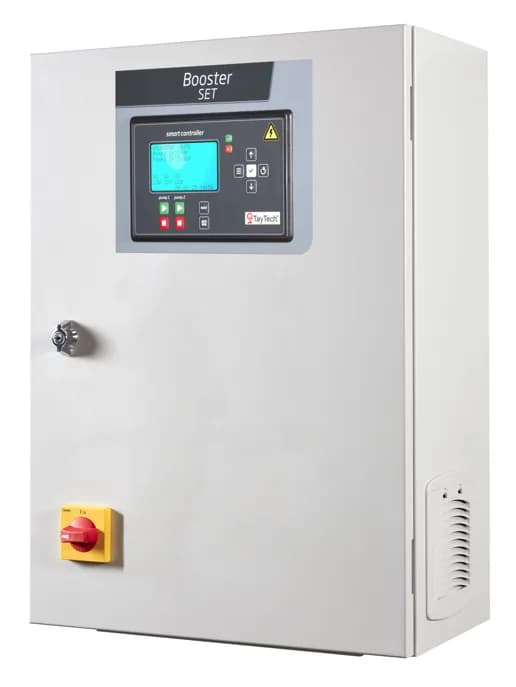

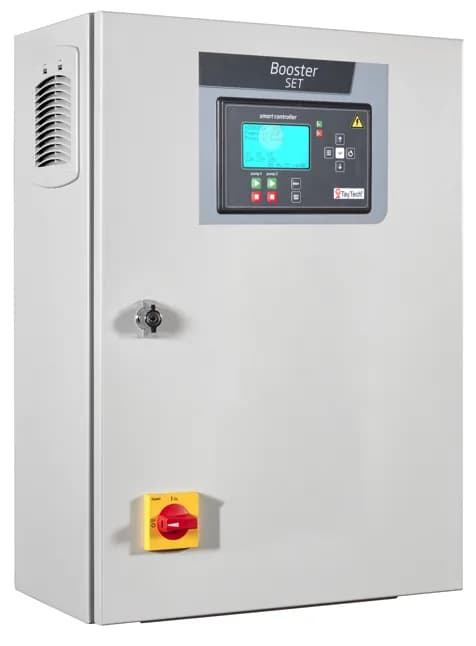

Controller with microprocessor for controlling up to 4 pump single or three-phase motors by star delta or direct starting method. Exclusive controller allows you to manage your system, configure the parameters, logs events and messages with practicly and multifunctional. (Pressurazition, Emptying, filling in waste and clean water applications).
- Operating and monitoring the system from remote location with using 3G / WI-FI App Module
- Easy and quick set-up features with navigation buttons and readable LCD display
- Different types of connections to start and stop motor such as; flow switch, level electrode, pressure switch and sensors
Technical Features
- Metallic / IP 54
- Main switch with locking mechanism
- Power supply 1-50/60Hz 230V ±%15
- Power supply 3-50/60Hz 400V ±%15
- 128 x 64 LCD Graphical Display
- Green LED for Motor Running / Red LED for failures
- Input for start command
- Displays Auto—Man Status
- Volt, Ampere, Alarms, Events and Date & Time Screen on Home Page
Protections and Failures
- Motor Overcurrent / Low current (Adjustable)
- Phase Loss and incorrect sequence
- Min / Max Voltage (Adjustable)
- Motor starting time
- Over Float function
- Dry running protection
- Motor protection fuses
- Star Delta Contactor AC3
- Displays pump run time
- Display and adjust to Maintenance time
- Password protection for un-authorized people access.
- USB port for downloading failures, messages, events and alarms with date&time. (Last 500)
- Adjustable weekly test run
- MODBus Connection
- Solenoid Valve output
In Application
