Smart Series
Smart Wastewater
Tap to inspect in full screen
Overview

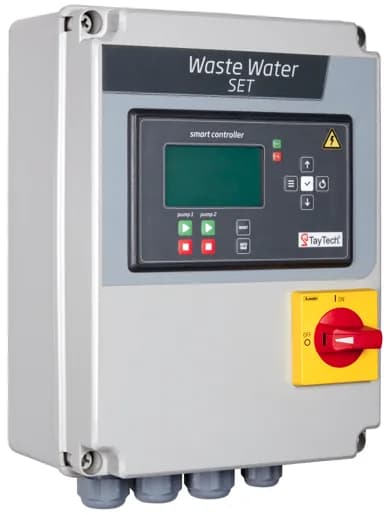

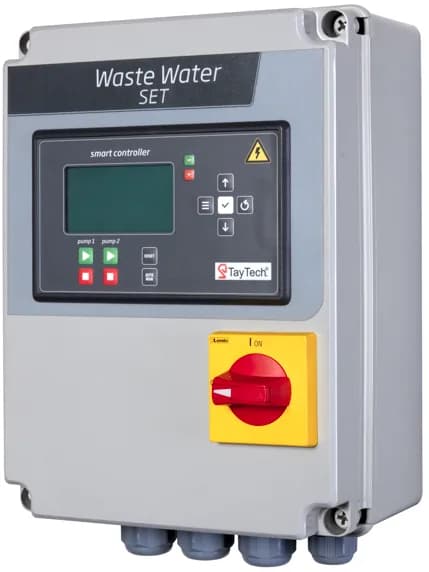

Controller with microprocessor for controlling up to 2 pump single or three-phase wastewater pumps. Wastewater controller allows you to manage your system, configure the parameters, logs events and messages with practicly and multifunctional. (Emptying, filling in wastewater applications)
- Smart Wastewater Panels are mounted in a specially designed IP 55 box that made of ABS material.
- Easy and quick set-up features with navigation buttons and readable LCD display
- Different types of connections to start and stop motor such as; pressure switches, float switch or level electrode
Technical Features
- Thermoplastic (ABS) / IP 55
- Power supply 1-50/60Hz 230V ±%15
- Power supply 3-50/60Hz 400V ±%15
- 128 x 64 LCD Graphical Display
- Green LED for Motor Running / Red LED for failures
- Input for start command (Float switch or level electrode)
- Displays Auto—Man Status
- Volt, Ampere, Alarms, Events and Date & Time Screen on Home Page
Protections and Failures
- Motor Overcurrent / Low current (Adjustable)
- Phase Loss and incorrect sequence
- Min / Max Voltage (Adjustable)
- Motor starting time
- Over Float function
- Dry running protection
- Seal Leakage status
- Motor protection fuses
- Main switch with locking mechanism
- Displays pump run time
- Display and adjust to Maintenance time
- Password protection for un-authorized people access.
- USB port for downloading failures, messages, events and alarms with date&time. (Last 500)
- MODBus Connection
