Magnetic Filters

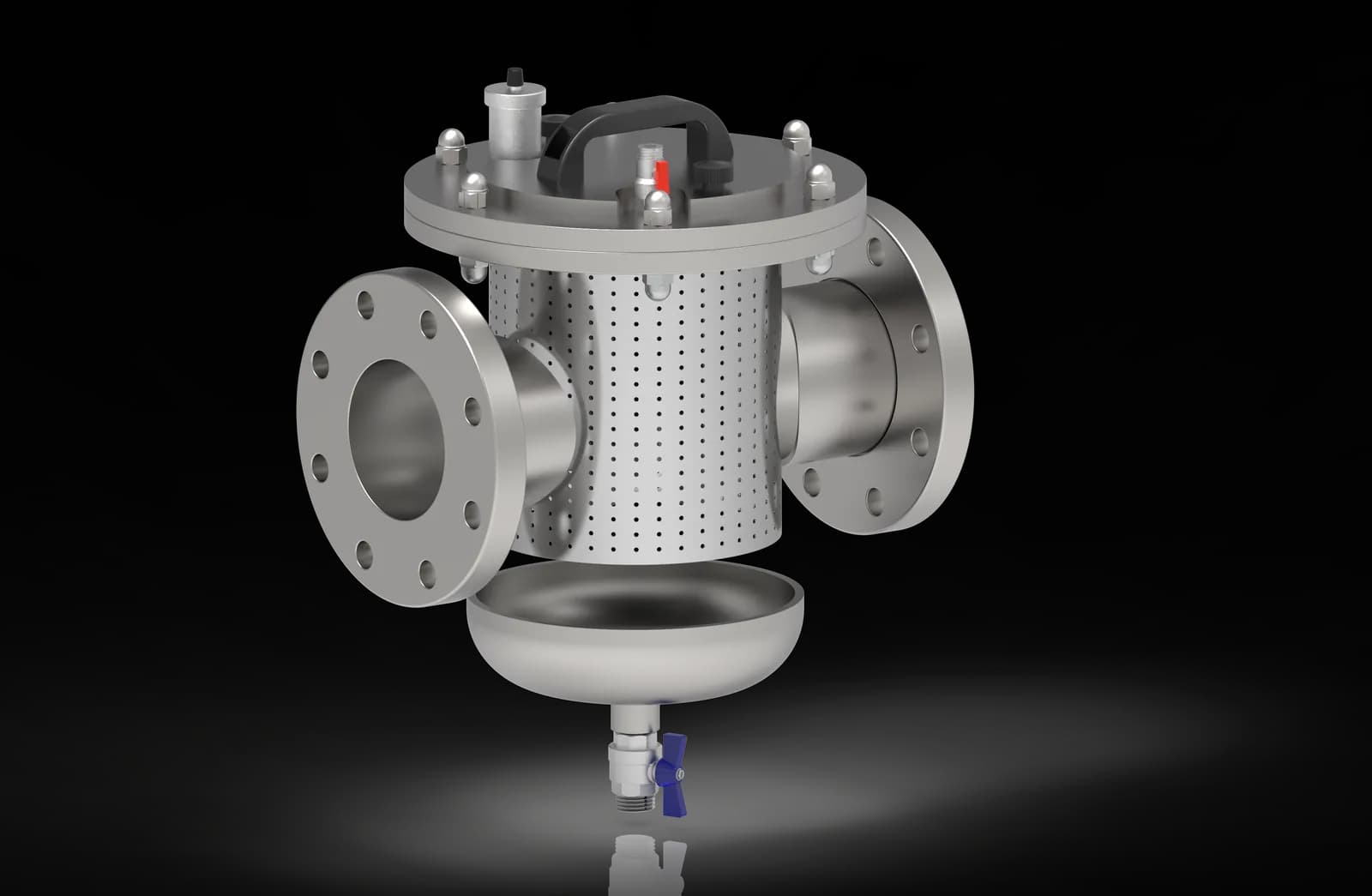

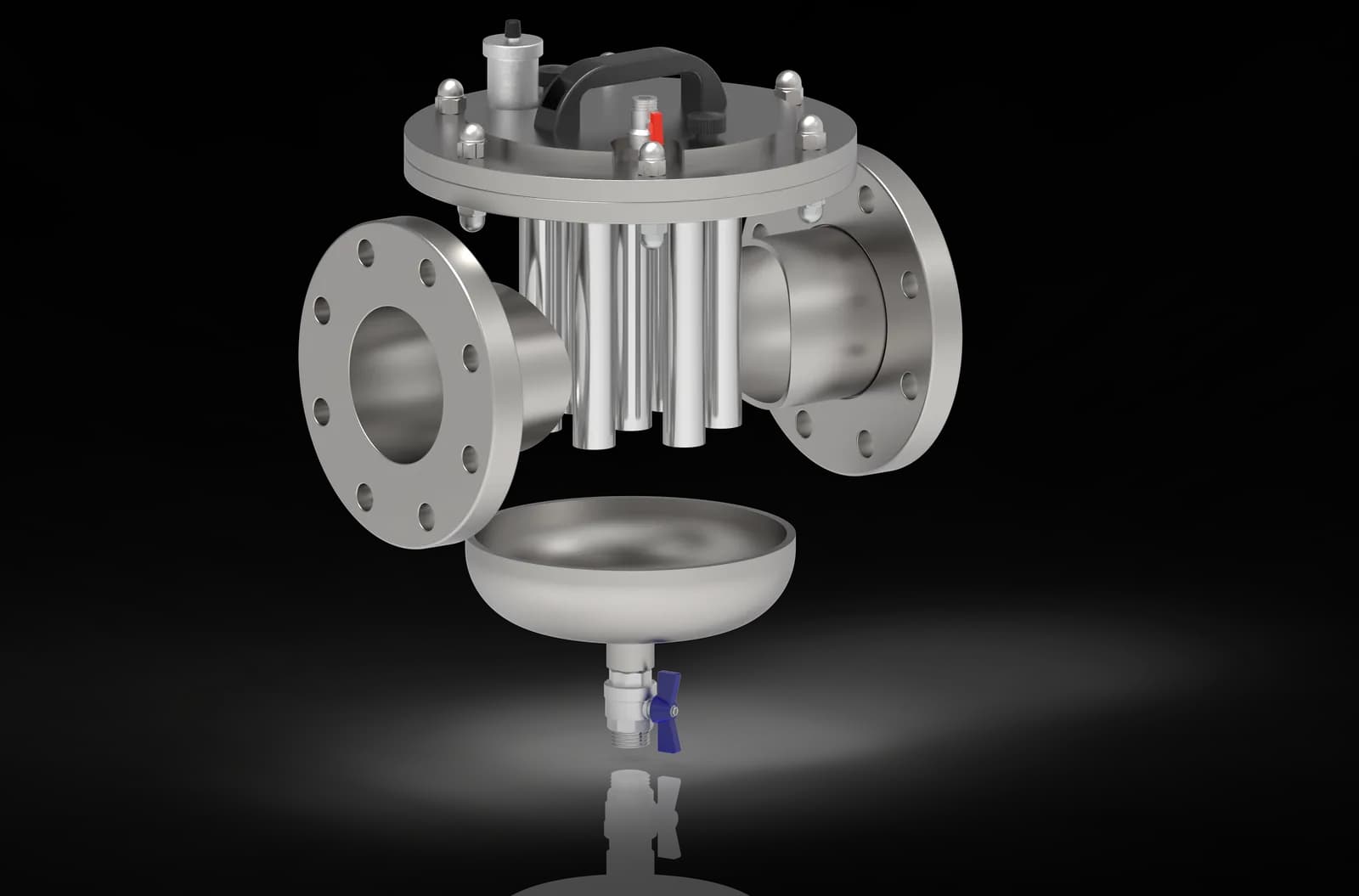

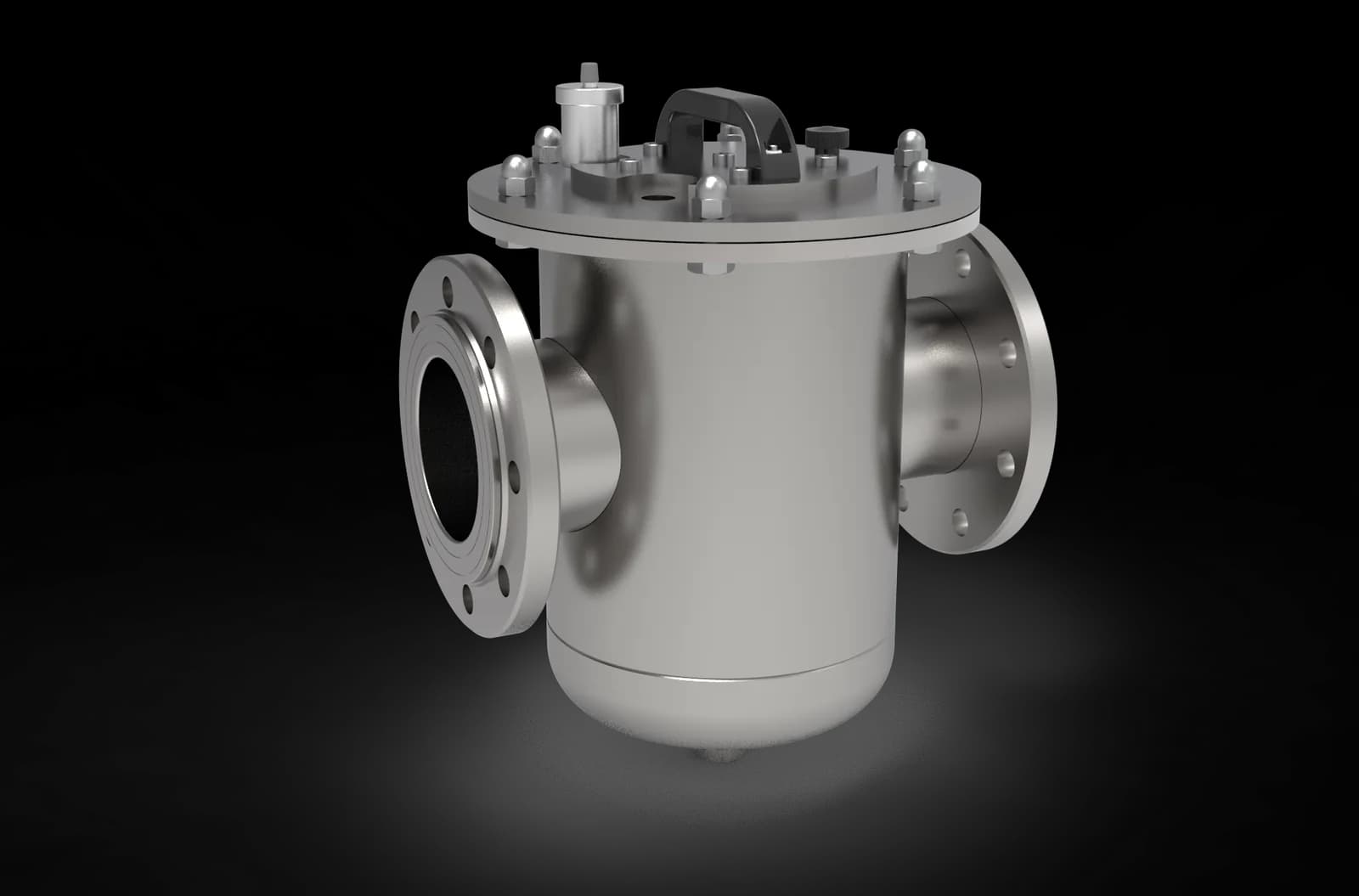

IRONINOX® Magnetic Filter

Tap to inspect in full screen

Overview

Iron powder and magnetite are not just a problem for residential installations. IronInox products can be used in various heating and cooling system applications. When using the IronInox Magnetic Filter with protective cleaning fluids together, heating and cooling systems get complete protection.

ADVANTAGES OF USE

  • Compatible with all heating and cooling systems
  • Reduces abrupt failure and high maintenance costs
  • Extends the life of system equipment
  • Helps restore system efficiency
  • High performance magnetic sticks capture even the smallest particles
  • Easy to install and maintain
  • Vacuum valve provides quick cleaning

TECHNICAL SPECIFICATIONS

Max. Running Pressure: 10 BarRunning Temperature: 3°C – 100°C
Body: TS EN 10219 – Stainless SteelDrain: 1" Ball ValveVacuum Valve: 1/2"Air Vent: Automatic 1/2"
Gasket: EPDMMagnets: 9500–10500 Gauss, NdFebSleeve: AISI 304
Separator Filter: AISI 304, 1000 MicronFlange: TS EN 1092-1, PN16

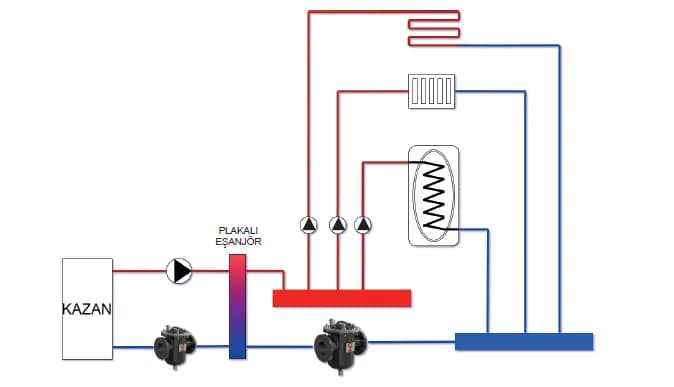

In Application

IRONINOX® Magnetic Filter application

Technical Data

Order Table

Connection DiameterNumber of MagnetsMagnetic Pull ForceOrder Code
DN50210000IRONINOX TIM50_TM02
DN50310000IRONINOX TIM50_TM03
DN50510000IRONINOX TIM50_TM05
DN65210000IRONINOX TIM65_TM02
DN65310000IRONINOX TIM65_TM03
DN65510000IRONINOX TIM65_TM05
DN80210000IRONINOX TIM80_TM02
DN80310000IRONINOX TIM80_TM03
DN80610000IRONINOX TIM80_TM06
DN100310000IRONINOX TIM100_TM03
DN100510000IRONINOX TIM100_TM05
DN100610000IRONINOX TIM100_TM06
DN125310000IRONINOX TIM125_TM03
DN125510000IRONINOX TIM125_TM05
DN125610000IRONINOX TIM125_TM06
DN150310000IRONINOX TIM150_TM03
DN150610000IRONINOX TIM150_TM06
DN150910000IRONINOX TIM150_TM09
DN200310000IRONINOX TIM200_TM03
DN200610000IRONINOX TIM200_TM06
DN200910000IRONINOX TIM200_TM09
DN250310000IRONINOX TIM250_TM03
DN250610000IRONINOX TIM250_TM06
DN250910000IRONINOX TIM250_TM09
DN300610000IRONINOX TIM300_TM06
DN300910000IRONINOX TIM300_TM09
DN3001210000IRONINOX TIM300_TM12

Documents

Magnetic Filter Catalogue 2025CatalogueIRONINOX Declaration of ConformityCertificate
