Star & Delta Start

Name: Star & Delta Start
Brand: Taytech

Move mouse to inspect details · Click for full screen

Tap to inspect in full screen

Overview

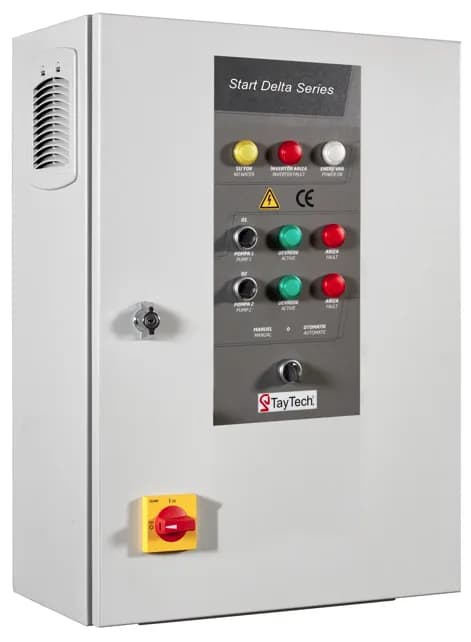

Controller for up to 4 pump single or three-phase motors with star-delta starter. Designed for pressurization, emptying and filling in waste and clean water applications.

FEATURES

Different types of connections to start/stop motor: flow switch, level electrode, pressure switches/sensors
Metal Enclosure / IP 54
Main switch with locking mechanism
Power supply: 3~400V ±15%, 50/60Hz
Green LED for motor running / Red LED for failures
Motor overcurrent, phase loss/sequence and dry running protection
Motor protection fuses
Star Delta Contactor AC3
Adjustable weekly test run
Solenoid valve output

In Application

Technical Data

Star & Delta Start (1 Pump)

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Star & Delta Start 1 - 5.5	23001	3 - 400	5.5	7.5	7.6-10	15	400	300	175	ABS
Star & Delta Start 1 - 7.5	23002	3 - 400	7.5	10	7.6-10	17	400	300	175	ABS
Star & Delta Start 1 - 11	23003	3 - 400	11	15	13-16	24	400	300	175	ABS
Star & Delta Start 1 - 15	23004	3 - 400	11	15	16-20	31	600	400	220	Metallic
Star & Delta Start 1 - 18.5	23005	4 - 400	18.5	25	20-24	38	600	400	220	Metallic
Star & Delta Start 1 - 22	23006	5 - 400	22	30	29-35	50	600	400	220	Metallic
Star & Delta Start 1 - 30	23007	6 - 400	30	40	35-38	60	600	400	220	Metallic
Star & Delta Start 1 - 37	23008	7 - 400	37	50	44-53	75	600	400	220	Metallic
Star & Delta Start 1 - 45	23009	8 - 400	45	60	50-60	100	600	400	220	Metallic
Star & Delta Start 1 - 55	23010	9 - 400	55	75	65-78	124	700	500	260	Metallic
Star & Delta Start 1 - 75	23011	10 - 400	75	100	75-87	135	700	500	260	Metallic
Star & Delta Start 1 - 90	23012	11 - 400	90	125	80-110	155	800	600	260	Metallic
Star & Delta Start 1 - 110	23013	12 - 400	110	150	100-135	200	800	600	260	Metallic
Star & Delta Start 1 - 132	23014	13 - 400	132	180	110-142	241	1000	700	320	Metallic
Star & Delta Start 1 - 160	23015	14 - 400	160	220	150-200	300	1000	700	320	Metallic
Star & Delta Start 1 - 200	23016	15 - 400	185	250	115-380	410	1200	800	320	Metallic

Star & Delta Start (2 Pump)

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Star & Delta Start 2 - 5.5	23001	3 - 400	5.5	7.5	7.6-10	15	400	300	175	ABS
Star & Delta Start 2 - 7.5	23002	3 - 400	7.5	10	7.6-10	17	400	300	175	ABS
Star & Delta Start 2 - 11	23003	3 - 400	11	15	13-16	24	400	300	175	ABS
Star & Delta Start 2 - 15	23004	3 - 400	11	15	16-20	31	600	400	220	Metallic
Star & Delta Start 2 - 18.5	23005	4 - 400	18.5	25	20-24	38	600	400	220	Metallic
Star & Delta Start 2 - 22	23006	5 - 400	22	30	29-35	50	600	400	220	Metallic
Star & Delta Start 2 - 30	23007	6 - 400	30	40	35-38	60	600	400	220	Metallic
Star & Delta Start 2 - 37	23008	7 - 400	37	50	44-53	75	600	400	220	Metallic
Star & Delta Start 2 - 45	23009	8 - 400	45	60	50-60	100	600	400	220	Metallic
Star & Delta Start 2 - 55	23010	9 - 400	55	75	65-78	124	700	500	260	Metallic
Star & Delta Start 2 - 75	23011	10 - 400	75	100	75-87	135	700	500	260	Metallic
Star & Delta Start 2 - 90	23012	11 - 400	90	125	80-110	155	800	600	260	Metallic
Star & Delta Start 2 - 110	23013	12 - 400	110	150	100-135	200	800	600	260	Metallic
Star & Delta Start 2 - 132	23014	13 - 400	132	180	110-142	241	1000	700	320	Metallic
Star & Delta Start 2 - 160	23015	14 - 400	160	220	150-200	300	1000	700	320	Metallic
Star & Delta Start 2 - 200	23016	15 - 400	185	250	115-380	410	1200	800	320	Metallic

Star & Delta Start (3 Pump)

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Star & Delta Start 3 - 5.5	23001	3 - 400	5.5	7.5	7.6-10	15	400	300	175	ABS
Star & Delta Start 3 - 7.5	23002	3 - 400	7.5	10	7.6-10	17	400	300	175	ABS
Star & Delta Start 3 - 11	23003	3 - 400	11	15	13-16	24	400	300	175	ABS
Star & Delta Start 3 - 15	23004	3 - 400	11	15	16-20	31	600	400	220	Metallic
Star & Delta Start 3 - 18.5	23005	4 - 400	18.5	25	20-24	38	600	400	220	Metallic
Star & Delta Start 3 - 22	23006	5 - 400	22	30	29-35	50	600	400	220	Metallic
Star & Delta Start 3 - 30	23007	6 - 400	30	40	35-38	60	600	400	220	Metallic
Star & Delta Start 3 - 37	23008	7 - 400	37	50	44-53	75	600	400	220	Metallic
Star & Delta Start 3 - 45	23009	8 - 400	45	60	50-60	100	600	400	220	Metallic
Star & Delta Start 3 - 55	23010	9 - 400	55	75	65-78	124	700	500	260	Metallic
Star & Delta Start 3 - 75	23011	10 - 400	75	100	75-87	135	700	500	260	Metallic
Star & Delta Start 3 - 90	23012	11 - 400	90	125	80-110	155	800	600	260	Metallic
Star & Delta Start 3 - 110	23013	12 - 400	110	150	100-135	200	800	600	260	Metallic
Star & Delta Start 3 - 132	23014	13 - 400	132	180	110-142	241	1000	700	320	Metallic
Star & Delta Start 3 - 160	23015	14 - 400	160	220	150-200	300	1000	700	320	Metallic
Star & Delta Start 3 - 200	23016	15 - 400	185	250	115-380	410	1200	800	320	Metallic

Star & Delta Start (4 Pump)

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Star & Delta Start 4 - 5.5	23001	3 - 400	5.5	7.5	7.6-10	15	400	300	175	ABS
Star & Delta Start 4 - 7.5	23002	3 - 400	7.5	10	7.6-10	17	400	300	175	ABS
Star & Delta Start 4 - 11	23003	3 - 400	11	15	13-16	24	400	300	175	ABS
Star & Delta Start 4 - 15	23004	3 - 400	11	15	16-20	31	600	400	220	Metallic
Star & Delta Start 4 - 18.5	23005	4 - 400	18.5	25	20-24	38	600	400	220	Metallic
Star & Delta Start 4 - 22	23006	5 - 400	22	30	29-35	50	600	400	220	Metallic
Star & Delta Start 4 - 30	23007	6 - 400	30	40	35-38	60	600	400	220	Metallic
Star & Delta Start 4 - 37	23008	7 - 400	37	50	44-53	75	600	400	220	Metallic
Star & Delta Start 4 - 45	23009	8 - 400	45	60	50-60	100	600	400	220	Metallic
Star & Delta Start 4 - 55	23010	9 - 400	55	75	65-78	124	700	500	260	Metallic
Star & Delta Start 4 - 75	23011	10 - 400	75	100	75-87	135	700	500	260	Metallic
Star & Delta Start 4 - 90	23012	11 - 400	90	125	80-110	155	800	600	260	Metallic
Star & Delta Start 4 - 110	23013	12 - 400	110	150	100-135	200	800	600	260	Metallic
Star & Delta Start 4 - 132	23014	13 - 400	132	180	110-142	241	1000	700	320	Metallic
Star & Delta Start 4 - 160	23015	14 - 400	160	220	150-200	300	1000	700	320	Metallic
Star & Delta Start 4 - 200	23016	15 - 400	185	250	115-380	410	1200	800	320	Metallic

Documents

Star & Delta Start Catalogue 2025Technical Document Star & Delta Start Declaration of ConformityCertificate
