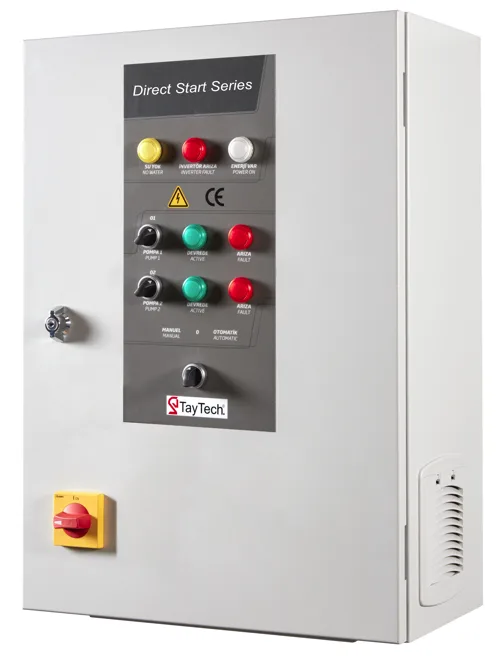

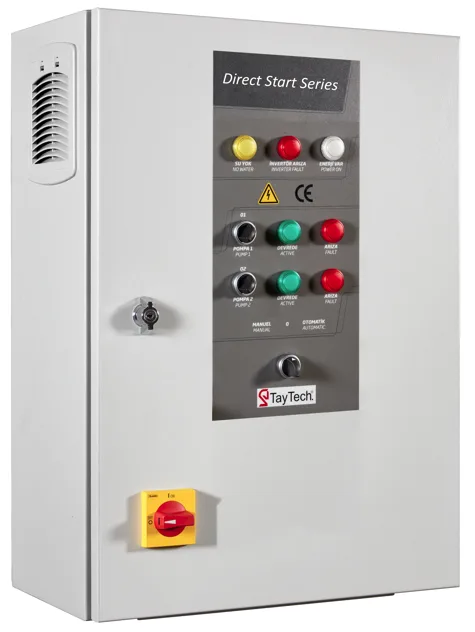

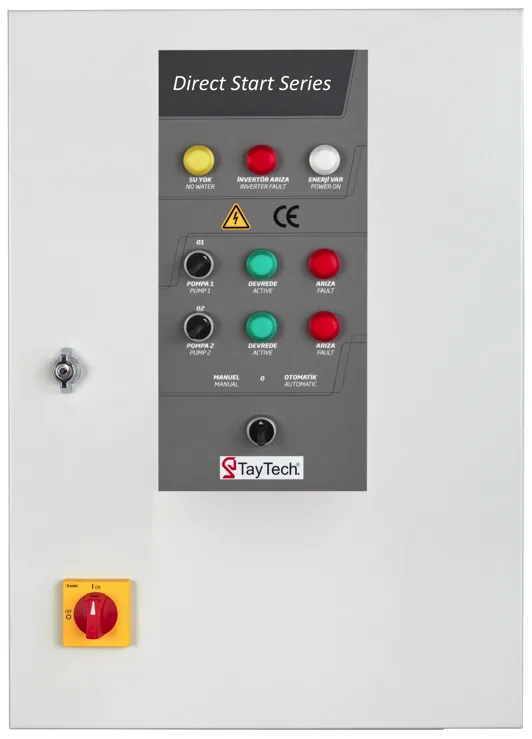

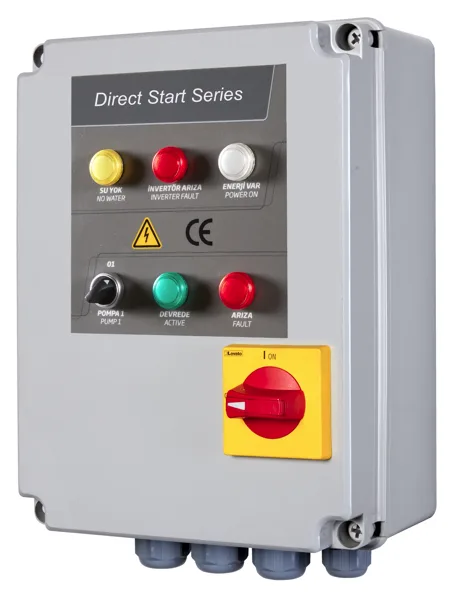

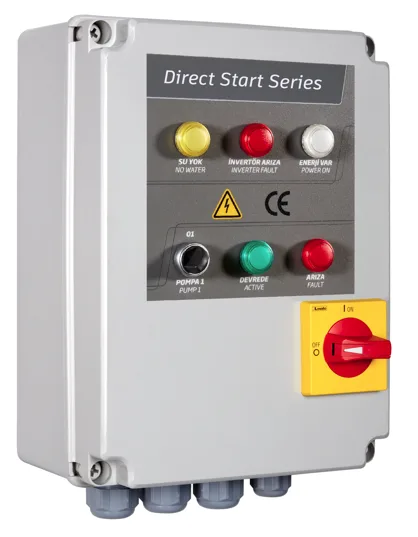

Electro Mechanical Panels

Direct Start

Doğrudan yol verme metoduna sahip, 1 veya 3 faz motorları 4 pompaya kadar aynı anda sürebilen kontrol paneli. (Temiz su ve pis su uygulamalarındaki doldurma, boşaltma ve basınçlandırma işlemleri için)

Şamandıra ve seviye elektrod bağlantısı ile, motoru durdurma, çalıştırma ve başlatmayı sağlar.

Teknik Özellikler

Metal / IP 54 / Su Geçirmez

Kilitleme mekanizmasına sahip ana kesici

Güç Beslemesi 1-50/60Hz 230V ±%15

Güç Beslemesi 3-50/60Hz 400V ±%15

Motor çalışıyor bilgisi için yeşil LED / Hatalar için Kırmızı LED

Başlatma komutu için giriş

Korumalar ve Hatalar;

Motor Aşırı akım koruması

Faz kaybı ve faz sırası için koruma

Kuru çalışma koruması

Motor koruma sigortaları

Yetkilendirilmemiş Kişilerin Ulaşmasını Engellemek için Şifre Korumalı Ekran

Haftalık olarak ayarlanabilen test

Teknik Dökümanlar

Sertifika

Katalog

Uygulama

Direct Start (1 Pompa)

	KOD	V-	kW	Hp	Aralık (A)	Max (A)	D	E	G	Malzeme	KG
Direct Start 1 - 0.37 Mono	22001	1-230	0.37	0.5	4.2-5.7	5.7	310	250	130	ABS	—
Direct Start 1 - 0.55 Mono	22002	1-230	0.55	0.75	5.7-7.6	7.6	310	250	130	ABS	—
Direct Start 1 - 0.75 Mono	22003	1-230	0.75	1	7.6-9	9	310	250	130	ABS	—
Direct Start 1 - 1.1 Mono	22004	1-230	1.1	1.5	10-12	12	310	250	130	ABS	—
Direct Start 1 - 1.5 mono	22005	1-230	1.5	2	13-16	16	310	250	130	ABS	—
Direct Start 1 - 2.2 Mono	22006	1-230	2.2	3	16-20	20	310	250	130	ABS	—
Direct Start 1 - 0.37	22007	3 - 400	0.37	0.5	1.0-1.3	1.3	310	250	130	ABS	—
Direct Start 1- 0.55	22008	3 - 400	0.55	0.75	1.7-2.3	2.3	310	250	130	ABS	—
Direct Start 1 - 0.75	22009	3 - 400	0.75	1	2.3-3.1	3.1	310	250	130	ABS	—
Direct Start 1 - 1.1	22010	3 - 400	1.1	1.5	2.3-3.1	3.1	310	250	130	ABS	—
Direct Start 1 - 1.5	22011	3 - 400	1.5	2	3.1-4.2	4.2	310	250	130	ABS	—
Direct Start 1 - 2.2	22012	3 - 400	2.2	3	5.7-7.6	7.6	310	250	130	ABS	—
Direct Start 1 - 3	22013	3 - 400	3	4	7.6-9	9	310	250	130	ABS	—
Direct Start 1 - 4	22014	3 - 400	4	5.5	7.6-9	9	310	250	130	ABS	—
Direct Start 1 - 5.5	22015	3 - 400	5.5	7.5	10-12	12	310	250	130	ABS	—
Direct Start 1 - 7.5	22016	3 - 400	7.5	10	13-16	16	310	250	130	ABS	—
Direct Start 1 - 9.6	22017	3 - 400	9.6	12.5	16-20	20	310	250	130	ABS	—
Direct Start 1 - 11	22018	3 - 400	11	15	20-24	24	310	250	130	ABS	—
Direct Start 1 - 15	22019	3 - 400	11	15	29-32	32	400	300	175	ABS	—
Direct Start 1 - 18.5	22020	3 - 400	18.5	25	35-38	38	400	300	175	ABS	—
Direct Start 1 - 22	22021	3 - 400	22	30	44-50	50	600	400	220	Metallic	—
Direct Start 1 - 30	22022	3 - 400	30	40	57-60	60	600	400	220	Metallic	—
Direct Start 1 - 37	22023	3 - 400	37	50	65-78	78	600	400	220	Metallic	—

Direct Start (2 Pompa)

	KOD	V-	kW	Hp	Aralık (A)	Max (A)	D	E	G	Malzeme	KG
Direct Start 2 - 0.37 Mono	22201	1-230	0.37	0.5	4.2-5.7	5.7	400	300	175	ABS	—
Direct Start 2 - 0.55 Mono	22202	1-230	0.55	0.75	5.7-7.6	7.6	400	300	175	ABS	—
Direct Start 2 - 0.75 Mono	22203	1-230	0.75	1	7.6-9	9	400	300	175	ABS	—
Direct Start 2 - 1.1 Mono	22204	1-230	1.1	1.5	10-12	12	400	300	175	ABS	—
Direct Start 2 - 1.5 Mono	22205	1-230	1.5	2	13-16	16	400	300	175	ABS	—
Direct Start 2 - 2.2 Mono	22206	1-230	2.2	3	16-20	20	400	300	175	ABS	—
Direct Start 2 - 0.37	22207	3 - 400	0.37	0.5	1.0-1.3	1.3	400	300	175	ABS	—
Direct Start 2 - 0.55	22208	3 - 400	0.55	0.75	1.7-2.3	2.3	400	300	175	ABS	—
Direct Start 2 - 0.75	22209	3 - 400	0.75	1	2.3-3.1	3.1	400	300	175	ABS	—
Direct Start 2 - 1.1	22210	3 - 400	1.1	1.5	2.3-3.1	3.1	400	300	175	ABS	—
Direct Start 2 - 1.5	22211	3 - 400	1.5	2	3.1-4.2	4.2	400	300	175	ABS	—
Direct Start 2 - 2.2	22212	3 - 400	2.2	3	5.7-7.6	7.6	400	300	175	ABS	—
Direct Start 2 - 3	22213	3 - 400	3	4	7.6-9	9	400	300	175	ABS	—
Direct Start 2 - 4	22214	3 - 400	4	5.5	7.6-9	9	400	300	175	ABS	—
Direct Start 2 - 5.5	22215	3 - 400	5.5	7.5	10-12	12	400	300	175	ABS	—
Direct Start 2 - 7.5	22216	3 - 400	7.5	10	13-16	16	400	300	175	ABS	—
Direct Start 2 - 9,6	22217	3 - 400	9.6	12.5	16-20	20	400	300	175	ABS	—
Direct Start 2 - 11	22218	3 - 400	11	15	20-24	24	400	300	175	ABS	—
Direct Start 2 - 15	22219	3 - 400	11	15	29-32	32	400	300	175	ABS	—
Direct Start 2 - 18.5	22220	3 - 400	18.5	25	35-38	38	400	300	175	ABS	—
Direct Start 2 - 22	22221	3 - 400	22	30	44-50	50	600	400	220	Metallic	—
Direct Start 2 - 30	22222	3 - 400	30	40	57-60	60	600	400	220	Metallic	—
Direct Start 2 - 37	22223	3 - 400	37	50	65-78	78	600	400	220	Metallic	—

Direct Start 3

	KOD	V-	kW	Hp	Aralık (A)	Max (A)	D	E	G	Malzeme	KG
Direct Start 3 - 0.37 Mono	22301	1-230	0.37	0.5	4.2-5.7	5.7	600	400	220	Metallic	—
Direct Start 3 - 0.55 Mono	22301	1-230	0.55	0.75	5.7-7.6	7.6	600	400	220	Metallic	—
Direct Start 3 - 0.75 Mono	22301	1-230	0.75	1	7.6-9	9	600	400	220	Metallic	—
Direct Start 3 - 1.1 Mono	22301	1-230	1.1	1.5	10-12	12	600	400	220	Metallic	—
Direct Start 3 - 1.5 Mono	22301	1-230	1.5	2	13-16	16	600	400	220	Metallic	—
Direct Start 3 - 2.2 Mono	22301	1-230	2.2	3	16-20	20	600	400	220	Metallic	—
Direct Start 3 - 0.37	22301	3 - 400	0.37	0.5	1.0-1.3	1.3	600	400	220	Metallic	—
Direct Start 3 - 0.55	22301	3 - 400	0.55	0.75	1.7-2.3	2.3	600	400	220	Metallic	—
Direct Start 3 - 0.75	22301	3 - 400	0.75	1	2.3-3.1	3.1	600	400	220	Metallic	—
Direct Start 3 - 1.1	22301	3 - 400	1.1	1.5	2.3-3.1	3.1	600	400	220	Metallic	—
Direct Start 3 - 1.5	22301	3 - 400	1.5	2	3.1-4.2	4.2	600	400	220	Metallic	—
Direct Start 3 - 2.2	22301	3 - 400	2.2	3	5.7-7.6	7.6	600	400	220	Metallic	—
Direct Start 3 - 3	22301	3 - 400	3	4	7.6-9	9	600	400	220	Metallic	—
Direct Start 3 - 4	22301	3 - 400	4	5.5	7.6-9	9	600	400	220	Metallic	—
Direct Start 3 - 5.5	22301	3 - 400	5.5	7.5	10-12	12	600	400	220	Metallic	—
Direct Start 3 - 7.5	22301	3 - 400	7.5	10	13-16	16	600	400	220	Metallic	—
Direct Start 3 - 9,6	22301	3 - 400	9.6	12.5	16-20	20	600	400	220	Metallic	—
Direct Start 3 - 11	22301	3 - 400	11	15	20-24	24	600	400	220	Metallic	—
Direct Start 3 - 15	22301	3 - 400	11	15	29-32	32	600	400	220	Metallic	—
Direct Start 3 - 18.5	22301	3 - 400	18.5	25	35-38	38	600	400	220	Metallic	—
Direct Start 3 - 22	22301	3 - 400	22	30	44-50	50	600	400	220	Metallic	—
Direct Start 3 - 30	22301	3 - 400	30	40	57-60	60	700	500	260	Metallic	—
Direct Start 3 - 37	22301	3 - 400	37	50	65-78	78	700	500	260	Metallic	—

Direct Start (4 Pompa)

	KOD	V-	kW	Hp	Aralık (A)	Max (A)	D	E	G	Malzeme	KG
Direct Start 4 - 0.37	22401	3 - 400	0.37	0.5	1.0-1.3	1.3	700	500	260	Metallic	—
Direct Start 4 - 0.55	22402	3 - 400	0.55	0.75	1.7-2.3	2.3	700	500	260	Metallic	—
Direct Start 4 - 0.75	22403	3 - 400	0.75	1	2.3-3.1	3.1	700	500	260	Metallic	—
Direct Start 4 - 1.1	22404	3 - 400	1.1	1.5	2.3-3.1	3.1	700	500	260	Metallic	—
Direct Start 4 - 1.5	22405	3 - 400	1.5	2	3.1-4.2	4.2	700	500	260	Metallic	—
Direct Start 4 - 2.2	22406	3 - 400	2.2	3	5.7-7.6	7.6	700	500	260	Metallic	—
Direct Start 4 - 3	22407	3 - 400	3	4	7.6-9	9	700	500	260	Metallic	—
Direct Start 4 - 4	22408	3 - 400	4	5.5	7.6-9	9	700	500	260	Metallic	—
Direct Start 4 - 5.5	22409	3 - 400	5.5	7.5	10-12	12	700	500	260	Metallic	—
Direct Start 4 - 7.5	22410	3 - 400	7.5	10	13-16	16	700	500	260	Metallic	—
Direct Start 4 - 9,6	22411	3 - 400	9.6	12.5	16-20	20	700	500	260	Metallic	—
Direct Start 4 - 11	22412	3 - 400	11	15	20-24	24	700	500	260	Metallic	—
Direct Start 4 - 15	22413	3 - 400	11	15	29-32	32	700	500	260	Metallic	—
Direct Start 4 - 18.5	22414	3 - 400	18.5	25	35-38	38	700	500	260	Metallic	—
Direct Start 4 - 22	22415	3 - 400	22	30	44-50	50	700	500	260	Metallic	—
Direct Start 4 - 30	22416	3 - 400	30	40	57-60	60	800	600	260	Metallic	—
Direct Start 4 - 37	22417	3 - 400	37	50	65-78	78	800	600	260	Metallic	—
