Smart Series

Smart Booster

Name: Smart Hidrofor
Brand: Taytech

Move mouse to inspect details · Click for full screen

Tap to inspect in full screen

Overview

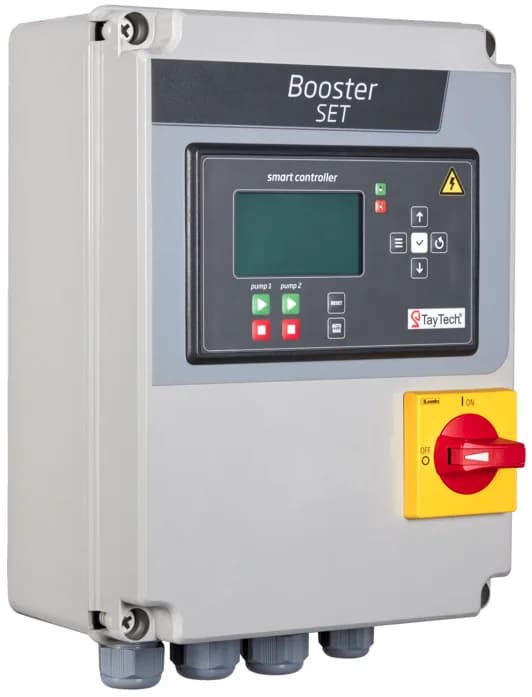

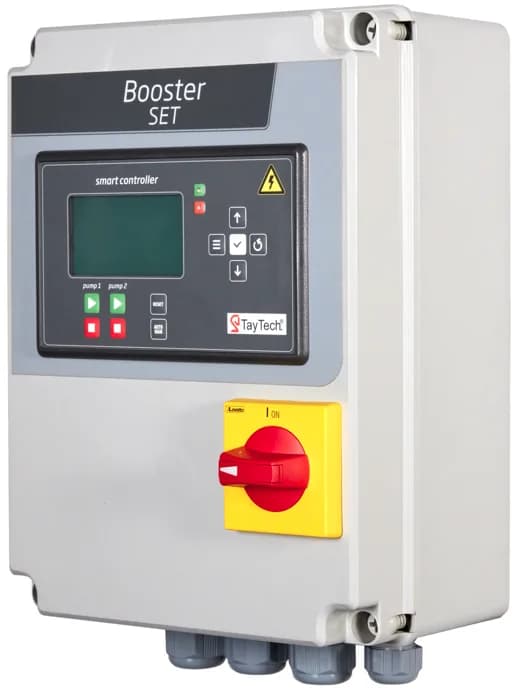

Microprocessor controlled panels for up to 2 pump single or three-phase systems. Smart Booster enables system management, parameter changes, event logging and more. Designed for pressurization processes in clean water applications.

FEATURES

3G / Wi-Fi module for remote operation, data viewing and system control
Easy and quick settings via clear LCD screen with navigation buttons
Various connection types to start/stop motor: pressure switch, flow switch etc.

TECHNICAL SPECIFICATIONS

Metal / IP 54 / WaterproofMain switch with locking mechanism

Power: 1~230V or 3~400V ±15%, 50/60HzMotor/Fault LED

Motor overcurrent, phase loss and dry running protectionMotor protection fuses

In Application

Technical Data

Smart Booster 1

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Smart Booster 1 / Mono	1001	1 - 230	2.2	3	0-18	18	310	250	130	ABS
Smart Booster 1 - 4/ Tri	11001	3 - 400	4	5.5	0-8.6	8.6	310	250	130	ABS
Smart Booster 1 - 5.5 / Tri	11002	3 - 400	5.5	7.5	0-11.6	11.6	310	250	130	ABS
Smart Booster 1 - 7.5 / Tri	11003	3 - 400	7.5	10	0-15.8	15.8	310	250	130	ABS
Smart Booster 1 - 11 / Tri	11004	3 - 400	11	15	0-25	25	310	250	130	ABS
Smart Booster 1 - 15 / Tri	11005	3 - 400	15	20	0-32	32	310	250	130	ABS

Smart Booster 2

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Smart Booster 2 / Mono	1021	1 - 230	2.2	3	0-18	18	310	250	130	ABS
Smart Booster 2 - 4/ Tri	11201	3 - 400	4	5.5	0-8.6	8.6	310	250	130	ABS
Smart Booster 2 - 5.5 / Tri	11202	3 - 400	5.5	7.5	0-11.6	11.6	310	250	130	ABS
Smart Booster 2 - 7.5 / Tri	11203	3 - 400	7.5	10	0-15.8	15.8	310	250	130	ABS
Smart Booster 2 - 11 / Tri	11204	3 - 400	11	15	0-25	25	310	250	130	ABS
Smart Booster 2 - 15 / Tri	11205	3 - 400	15	20	0-32	32	310	250	130	ABS
