Smart Series

Smart Wastewater

Name: Smart Atık Su
Brand: Taytech

Move mouse to inspect details · Click for full screen

Tap to inspect in full screen

Overview

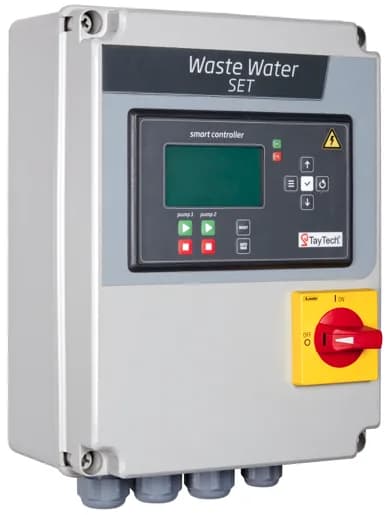

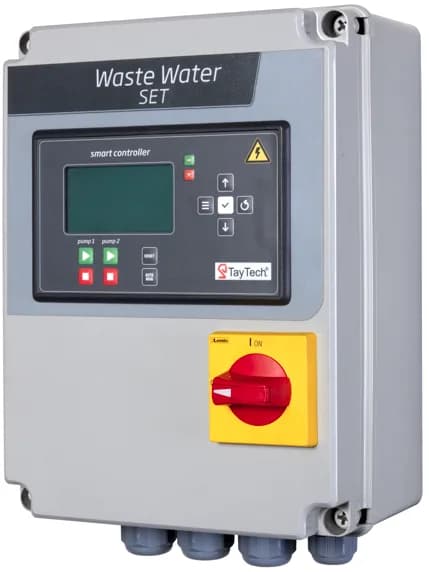

Microprocessor controlled panels for up to 2 pump single or three-phase systems. Smart Wastewater handles filling and emptying processes in waste water applications.

FEATURES

3G / Wi-Fi module for remote operation, data viewing and system control
Easy and quick settings via clear LCD screen
Starts, runs and stops system based on float switch or level electrode signals

TECHNICAL SPECIFICATIONS

IP 55 ABS WaterproofMain switch with locking mechanism

Power: 1~230V or 3~400V ±15%, 50/60HzMotor/Fault LED

Motor overcurrent, phase loss and dry running protectionMotor protection fuses

In Application

Technical Data

Smart Wastewater 1

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Smart Wastewater 1 / Mono	1031	1 - 230	2.2	3	0-18	18	310	250	130	ABS
Smart Wastewater 1 - 4/ Tri	12001	3 - 400	4	5.5	0-8.6	8.6	310	250	130	ABS
Smart Wastewater 1 - 5.5 / Tri	12002	3 - 400	5.5	7.5	0-11.6	11.6	310	250	130	ABS
Smart Wastewater 1 - 7.5 / Tri	12003	3 - 400	7.5	10	0-15.8	15.8	310	250	130	ABS
Smart Wastewater 1 - 11 / Tri	12004	3 - 400	11	15	0-25	25	310	250	130	ABS
Smart Wastewater 1 - 15 / Tri	12005	3 - 400	15	20	0-32	32	310	250	130	ABS

Smart Wastewater 2

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Smart Wastewater 2 / Mono	1041	1 - 230	2.2	3	0-18	18	310	250	130	ABS
Smart Wastewater 2 - 4/ Tri	12201	3 - 400	4	5.5	0-8.6	8.6	310	250	130	ABS
Smart Wastewater 2 - 5.5 / Tri	12202	3 - 400	5.5	7.5	0-11.6	11.6	310	250	130	ABS
Smart Wastewater 2 - 7.5 / Tri	12203	3 - 400	7.5	10	0-15.8	15.8	310	250	130	ABS
Smart Wastewater 2 - 11 / Tri	12204	3 - 400	11	15	0-25	25	310	250	130	ABS
Smart Wastewater 2 - 15 / Tri	12205	3 - 400	15	20	0-32	32	310	250	130	ABS
