Smart Series

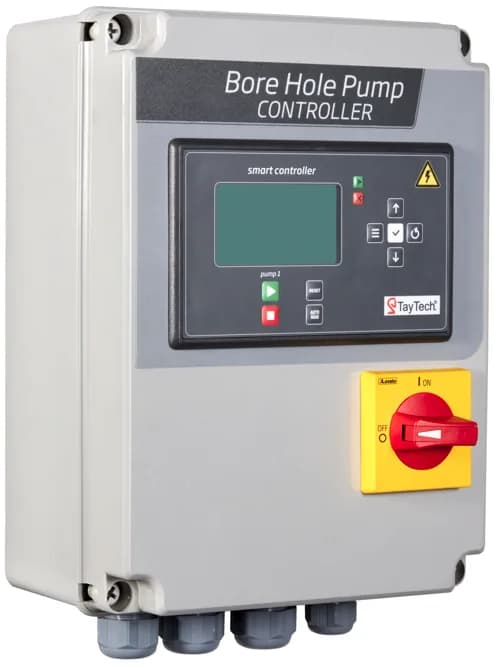

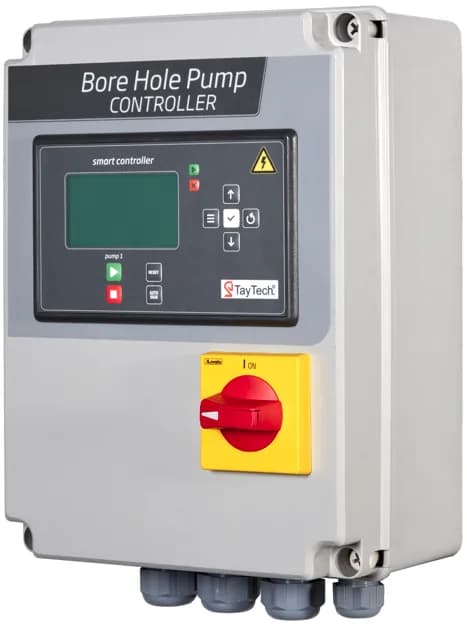

Smart Bore Hole

Name: Smart Derin Kuyu
Brand: Taytech

Move mouse to inspect details · Click for full screen

Tap to inspect in full screen

Overview

Microprocessor controlled panels for up to 2 pump single or three-phase systems. Smart Bore Hole handles filling and emptying processes in waste and clean water applications.

FEATURES

3G / Wi-Fi module for remote operation and data viewing
Easy and quick settings via clear LCD screen
Starts, runs and stops system based on float switch or level electrode signals

TECHNICAL SPECIFICATIONS

IP 55 ABS waterproof enclosureMain switch with locking mechanism

Power: 1~230V or 3~400V ±15%, 50/60HzMotor/Fault LED

Motor overcurrent, phase loss and dry running protectionMotor protection fuses

In Application

Technical Data

Smart Bore Hole 1

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Smart Bore Hole 1 / Mono	1001	1 - 230	2.2	3	0-18	18	310	250	130	ABS
Smart Bore Hole 1 - 4/ Tri	11001	3 - 400	4	5.5	0-8.6	8.6	310	250	130	ABS
Smart Bore Hole 1 - 5.5 / Tri	11002	3 - 400	5.5	7.5	0-11.6	11.6	310	250	130	ABS
Smart Bore Hole 1 - 7.5 / Tri	11003	3 - 400	7.5	10	0-15.8	15.8	310	250	130	ABS
Smart Bore Hole 1 - 11 / Tri	11004	3 - 400	11	15	0-25	25	310	250	130	ABS
Smart Bore Hole 1 - 15 / Tri	11005	3 - 400	15	20	0-32	32	310	250	130	ABS

Smart Bore Hole 2

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Smart Bore Hole 2 / Mono	1021	1 - 230	2.2	3	0-18	18	310	250	130	ABS
Smart Bore Hole 2 - 4/ Tri	11201	3 - 400	4	5.5	0-8.6	8.6	310	250	130	ABS
Smart Bore Hole 2 - 5.5 / Tri	11202	3 - 400	5.5	7.5	0-11.6	11.6	310	250	130	ABS
Smart Bore Hole 2 - 7.5 / Tri	11203	3 - 400	7.5	10	0-15.8	15.8	310	250	130	ABS
Smart Bore Hole 2 - 11 / Tri	11204	3 - 400	11	15	0-25	25	310	250	130	ABS
Smart Bore Hole 2 - 15 / Tri	11205	3 - 400	15	20	0-32	32	310	250	130	ABS
