Name: Smart Exclusive
Brand: Taytech

Move mouse to inspect details · Click for full screen

Tap to inspect in full screen

Overview

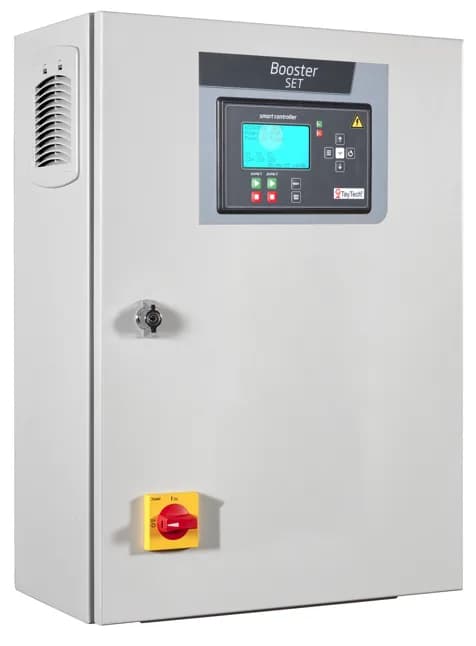

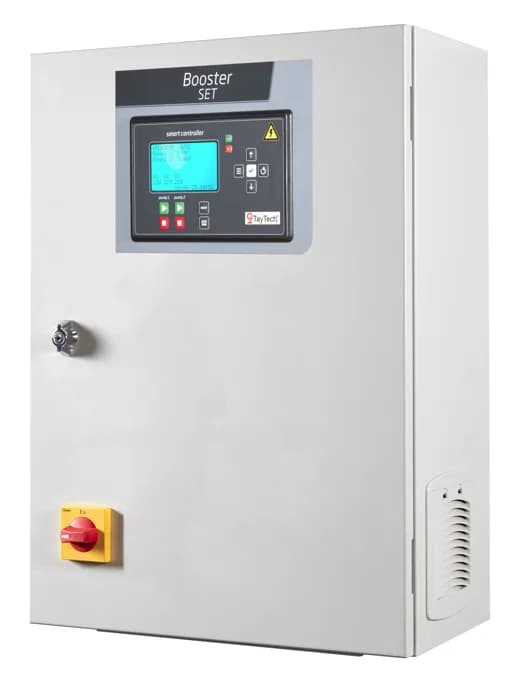

Microprocessor controlled panels for up to 4 pump single or three-phase systems. Smart Exclusive enables system management, parameter changes, event logging and more. For pressurization, emptying and filling in waste and clean water applications.

FEATURES

3G / Wi-Fi module for remote operation, data viewing and system control
Easy and quick settings via clear LCD screen
Manages system based on float switch, pressure sensor/switch or level electrode signals

TECHNICAL SPECIFICATIONS

Metal / IP 54 / WaterproofMain switch with locking mechanism

Power: 1~230V or 3~400V ±15%, 50/60HzMotor/Fault LED

Motor overcurrent, phase loss and dry running protectionMotor protection fuses

In Application

Technical Data

Exclusive D (3 Pump)

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Exclusive D 3 / Mono	1071	1 - 230	2.2	3	0-18	18	600	400	200	Metallic
Exclusive D 3 - 4/ Tri	15001	3 - 400	4	5.5	0-8.6	0-8.6	600	400	200	Metallic
Exclusive D 3 - 5.5 / Tri	15002	3 - 400	5.5	7.5	0-11.6	0-11.6	600	400	200	Metallic
Exclusive D 3 - 7.5 / Tri	15003	3 - 400	7.5	10	0-15.8	0-15.8	600	400	200	Metallic
Exclusive D 3 - 11 / Tri	15004	3 - 400	11	15	0-25	25	600	400	200	Metallic
Exclusive D 3 - 15 / Tri	15005	3 - 400	15	20	0-32	32	600	400	200	Metallic

Exclusive D (4 Pump)

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Exclusive D 4 / Mono	1081	1 - 230	2.2	3	0-18	18	600	400	200	Metallic
Exclusive D 4 - 4/ Tri	15201	3 - 400	4	5.5	0-8.6	0-8.6	600	400	200	Metallic
Exclusive D 4 - 5.5 / Tri	15202	3 - 400	5.5	7.5	0-11.6	0-11.6	600	400	200	Metallic
Exclusive D 4 - 7.5 / Tri	15203	3 - 400	7.5	10	0-15.8	0-15.8	600	400	200	Metallic
Exclusive D 4 - 11 / Tri	15204	3 - 400	11	15	0-25	25	600	400	200	Metallic
Exclusive D 4 - 15 / Tri	15205	3 - 400	15	20	0-32	32	600	400	200	Metallic

Exclusive S 1

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Exclusive S 1 - 7.5 / Tri	16001	3 - 400	7.5	10	0-15.8	15.8	400	300	175	ABS
Exclusive S 1 - 11 / Tri	16002	3 - 400	11	15	0-25	25	400	300	175	ABS
Exclusive S 1 - 15 / Tri	16003	3 - 400	15	20	0-31.9	31.9	600	400	200	Metallic
Exclusive S 1 - 18.5 / Tri	16004	3 - 400	18.5	25	0-37.1	37.1	600	400	200	Metallic
Exclusive S 1 - 22 / Tri	16005	3 - 400	22	30	0-42.7	42.7	600	400	200	Metallic
Exclusive S 1 - 30 / Tri	16006	3 - 400	30	40	0-57.6	57.6	600	400	200	Metallic
Exclusive S 1 - 37 / Tri	16007	3 - 400	37	50	0-70.2	70.2	600	400	200	Metallic
Exclusive S 1 - 45 / Tri	16008	3 - 400	45	60	0-83.5	83.5	700	500	200	Metallic
Exclusive S 1 - 55 / Tri	16009	3 - 400	55	75	0-100.9	100.9	700	500	200	Metallic
Exclusive S 1 - 75 / Tri	16010	3 - 400	75	100	0-140.7	140.7	700	500	200	Metallic
Exclusive S 1 - 90 / Tri	16011	3 - 400	90	125	0-165.1	165.1	800	600	290	Metallic
Exclusive S 1 - 110 / Tri	16012	3 - 400	110	150	0-201.9	201.9	800	600	290	Metallic
Exclusive S 1 - 132 / Tri	16013	3 - 400	132	180	0-242.2	242.2	1000	700	320	Metallic
Exclusive S 1 - 160 / Tri	16014	3 - 400	160	220	0-290.6	290.6	1000	700	320	Metallic
Exclusive S 1 - 185 / Tri	16015	3 - 400	185	250	0-332.4	332.4	1200	800	340	Metallic
Exclusive S 1 - 200 / Tri	16016	3 - 400	200	270	0-355.4	355.4	1200	800	340	Metallic
Exclusive S 1 - 250 / Tri	16017	3 - 400	250	340	0-444.3	444.3	1200	800	340	Metallic
Exclusive S 1 - 315 / Tri	16018	3 - 400	315	430	0-553.6	553.6	1300	900	360	Metallic
Exclusive S 1 - 355 / Tri	16019	3 - 400	355	485	0-623.9	623.9	1300	900	360	Metallic
Exclusive S 1 - 400 / Tri	16020	3 - 400	400	544	0-703	703	1300	900	360	Metallic

Exclusive S 2

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Exclusive S 2 - 7.5 / Tri	16201	3 - 400	7.5	10	0-15.8	15.8	600	400	200	Metallic
Exclusive S 2 - 11 / Tri	16202	3 - 400	11	15	0-25	25	600	400	200	Metallic
Exclusive S 2 - 15 / Tri	16203	3 - 400	15	20	0-31.9	31.9	600	400	200	Metallic
Exclusive S 2 - 18.5 / Tri	16204	3 - 400	18.5	25	0-37.1	37.1	600	400	200	Metallic
Exclusive S 2 - 22 / Tri	16205	3 - 400	22	30	0-42.7	42.7	700	500	260	Metallic
Exclusive S 2 - 30 / Tri	16206	3 - 400	30	40	0-57.6	57.6	700	500	260	Metallic
Exclusive S 2 - 37 / Tri	16207	3 - 400	37	50	0-70.2	70.2	800	600	290	Metallic
Exclusive S 2 - 45 / Tri	16208	3 - 400	45	60	0-83.5	83.5	1000	700	320	Metallic
Exclusive S 2 - 55 / Tri	16209	3 - 400	55	75	0-100.9	100.9	1000	700	320	Metallic
Exclusive S 2 - 75 / Tri	16210	3 - 400	75	100	0-140.7	140.7	1200	800	340	Metallic
Exclusive S 2 - 90 / Tri	16211	3 - 400	90	125	0-165.1	165.1	1400	800	340	Metallic
Exclusive S 2 - 110 / Tri	16212	3 - 400	110	150	0-201.9	201.9	1400	800	340	Metallic
Exclusive S 2 - 132 / Tri	16213	3 - 400	132	180	0-242.2	242.2	1800	950	360	Metallic
Exclusive S 2 - 160 / Tri	16214	3 - 400	160	220	0-290.6	290.6	1800	950	360	Metallic
Exclusive S 2 - 185 / Tri	16215	3 - 400	185	250	0-332.4	332.4	2000	1000	420	Metallic
Exclusive S 2 - 200 / Tri	16216	3 - 400	200	270	0-355.4	355.4	2000	1000	420	Metallic
Exclusive S 2 - 250 / Tri	16217	3 - 400	250	340	0-444.3	444.3	2000	1000	420	Metallic
Exclusive S 2 - 315 / Tri	16218	3 - 400	315	430	0-553.6	553.6	2100	1600	500	Metallic
Exclusive S 2 - 355 / Tri	16219	3 - 400	355	485	0-623.9	623.9	2100	1600	500	Metallic
Exclusive S 2 - 400 / Tri	16220	3 - 400	400	544	0-703	703	2100	1600	500	Metallic

Exclusive S 3

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Exclusive S 3 - 7.5 / Tri	16301	3 - 400	7.5	10	0-15.8	15.8	600	500	260	Metallic
Exclusive S 3 - 11 / Tri	16302	3 - 400	11	15	0-25	25	600	500	260	Metallic
Exclusive S 3 - 15 / Tri	16303	3 - 400	15	20	0-31.9	31.9	600	600	290	Metallic
Exclusive S 3 - 18.5 / Tri	16304	3 - 400	18.5	25	0-37.1	37.1	600	700	320	Metallic
Exclusive S 3 - 22 / Tri	16305	3 - 400	22	30	0-42.7	42.7	700	700	320	Metallic
Exclusive S 3 - 30 / Tri	16306	3 - 400	30	40	0-57.6	57.6	700	800	340	Metallic
Exclusive S 3 - 37 / Tri	16307	3 - 400	37	50	0-70.2	70.2	800	800	340	Metallic
Exclusive S 3 - 45 / Tri	16308	3 - 400	45	60	0-83.5	83.5	1000	800	340	Metallic
Exclusive S 3 - 55 / Tri	16309	3 - 400	55	75	0-100.9	100.9	1000	950	360	Metallic
Exclusive S 3 - 75 / Tri	16310	3 - 400	75	100	0-140.7	140.7	1200	950	360	Metallic
Exclusive S 3 - 90 / Tri	16311	3 - 400	90	125	0-165.1	165.1	1400	1200	420	Metallic
Exclusive S 3 - 110 / Tri	16312	3 - 400	110	150	0-201.9	201.9	1400	1200	420	Metallic
Exclusive S 3 - 132 / Tri	16313	3 - 400	132	180	0-242.2	242.2	1800	1200	420	Metallic
Exclusive S 3 - 160 / Tri	16314	3 - 400	160	220	0-290.6	290.6	1800	1600	500	Metallic
Exclusive S 3 - 185 / Tri	16315	3 - 400	185	250	0-332.4	332.4	2000	1600	500	Metallic
Exclusive S 3 - 200 / Tri	16316	3 - 400	200	270	0-355.4	355.4	2000	1600	500	Metallic
Exclusive S 3 - 250 / Tri	16317	3 - 400	250	340	0-444.3	444.3	2000	1600	500	Metallic
Exclusive S 3 - 315 / Tri	16318	3 - 400	315	430	0-553.6	553.6	2100	1600	550	Metallic
Exclusive S 3 - 355 / Tri	16319	3 - 400	355	485	0-623.9	623.9	2100	1600	550	Metallic
Exclusive S 3 - 400 / Tri	16320	3 - 400	400	544	0-703	703	2100	1600	550	Metallic

Exclusive S 4

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Exclusive S 4 - 7.5 / Tri	16401	3 - 400	7.5	10	0-15.8	15.8	800	600	290	Metallic
Exclusive S 4 - 11 / Tri	16402	3 - 400	11	15	0-25	25	800	600	290	Metallic
Exclusive S 4 - 15 / Tri	16403	3 - 400	15	20	0-31.9	31.9	800	600	290	Metallic
Exclusive S 4 - 18.5 / Tri	16404	3 - 400	18.5	25	0-37.1	37.1	1000	700	320	Metallic
Exclusive S 4 - 22 / Tri	16405	3 - 400	22	30	0-42.7	42.7	1000	700	320	Metallic
Exclusive S 4 - 30 / Tri	16406	3 - 400	30	40	0-57.6	57.6	1200	800	340	Metallic
Exclusive S 4 - 37 / Tri	16407	3 - 400	37	50	0-70.2	70.2	1400	800	340	Metallic
Exclusive S 4 - 45 / Tri	16408	3 - 400	45	60	0-83.5	83.5	1400	800	340	Metallic
Exclusive S 4 - 55 / Tri	16409	3 - 400	55	75	0-100.9	100.9	1800	950	360	Metallic
Exclusive S 4 - 75 / Tri	16410	3 - 400	75	100	0-140.7	140.7	1800	950	360	Metallic
Exclusive S 4 - 90 / Tri	16411	3 - 400	90	125	0-165.1	165.1	2000	1600	500	Metallic
Exclusive S 4 - 110 / Tri	16412	3 - 400	110	150	0-201.9	201.9	2000	1600	500	Metallic
Exclusive S 4 - 132 / Tri	16413	3 - 400	132	180	0-242.2	242.2	2000	1600	500	Metallic
Exclusive S 4 - 160 / Tri	16414	3 - 400	160	220	0-290.6	290.6	2200	1600	550	Metallic
Exclusive S 4 - 185 / Tri	16415	3 - 400	185	250	0-332.4	332.4	2200	1600	550	Metallic
Exclusive S 4 - 200 / Tri	16416	3 - 400	200	270	0-355.4	355.4	2200	1600	550	Metallic
Exclusive S 4 - 250 / Tri	16417	3 - 400	250	340	0-444.3	444.3	2200	1600	550	Metallic
Exclusive S 4 - 315 / Tri	16418	3 - 400	315	430	0-553.6	553.6	2400	1800	600	Metallic
Exclusive S 4 - 355 / Tri	16419	3 - 400	355	485	0-623.9	623.9	2400	1800	600	Metallic
Exclusive S 4 - 400 / Tri	16420	3 - 400	400	544	0-703	703	2400	1800	600	Metallic
