Smart Series

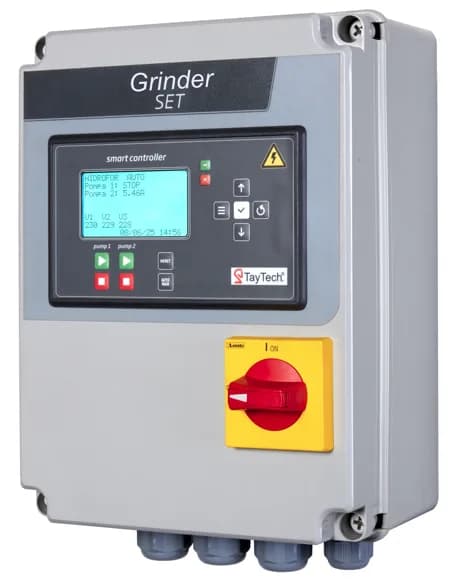

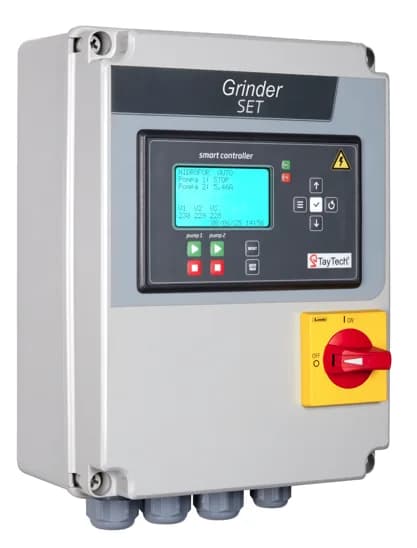

Smart Grinder

Name: Smart Grinder
Brand: Taytech

Move mouse to inspect details · Click for full screen

Tap to inspect in full screen

Overview

Microprocessor controlled panels for up to 2 pump single or three-phase systems. Smart Grinder enables system management, parameter changes, event logging and more.

FEATURES

3G / Wi-Fi module for remote operation, data viewing and system control
Easy and quick settings via clear LCD screen
Starts, runs and stops system based on float switch signals
Waterproof IP 55 ABS custom design enclosure

TECHNICAL SPECIFICATIONS

IP 55 ABS WaterproofMain switch with locking mechanism

Power: 1~230V or 3~400V ±15%, 50/60HzMotor/Fault LED

Motor overcurrent, phase loss and dry running protectionMotor protection fuses

In Application

Technical Data

Smart Grinder 1

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Smart Grinder 1 - 4/ Tri	14001	3 - 400	2.2	3	0-18	18	310	250	130	ABS
Smart Grinder 1 - 5.5 / Tri	14002	3 - 400	4	5.5	0-8.6	8.6	310	250	130	ABS
Smart Grinder 1 - 7.5 / Tri	14003	3 - 400	5.5	7.5	0-11.6	11.6	310	250	130	ABS
Smart Grinder 1 - 11 / Tri	14004	3 - 400	7.5	10	0-15.8	15.8	310	250	130	ABS
Smart Grinder 1 - 15 / Tri	14005	3 - 400	11	15	0-25	25	310	250	130	ABS

Smart Grinder 2

	CODE	V-	kW	Hp	Range (A)	Max (A)	D	E	G	Material
Smart Grinder 2 - 4/ Tri	14201	3 - 400	2.2	3	0-18	18	310	250	130	ABS
Smart Grinder 2 - 5.5 / Tri	14202	3 - 400	4	5.5	0-8.6	8.6	310	250	130	ABS
Smart Grinder 2 - 7.5 / Tri	14203	3 - 400	5.5	7.5	0-11.6	11.6	310	250	130	ABS
Smart Grinder 2 - 11 / Tri	14204	3 - 400	7.5	10	0-15.8	15.8	310	250	130	ABS
Smart Grinder 2 - 15 / Tri	14205	3 - 400	11	15	0-25	25	310	250	130	ABS
